Gauge Pole Retriever Device


The ATECO U.K. Float Retriever provides an excellent "no mess" float retrieval system that allows the operator to retrieve the float and move it out of the way for the sampling process with no product spill or mess.

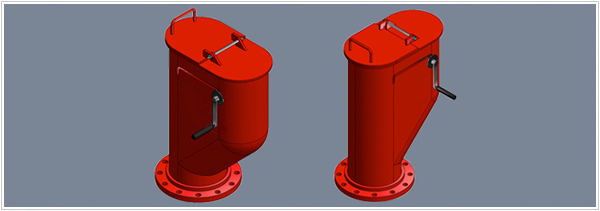

The float chain is attached to a spool which is rotated by the hand crank. When the float reaches the top, the spool shaft and hand crank is then moved to the rear of the retriever housing. This action stores the float to one side and allows the operator access to the gauge pole. A stop rod is provided to lock the hand crank in this position.

Product Features
* Excellent "no mess" float retrival
* Long service life
* Maintenance free
* Fast and simple installation
* Prevents seizing of the Gauge Pole Pipe
* Extra locking pin

Material

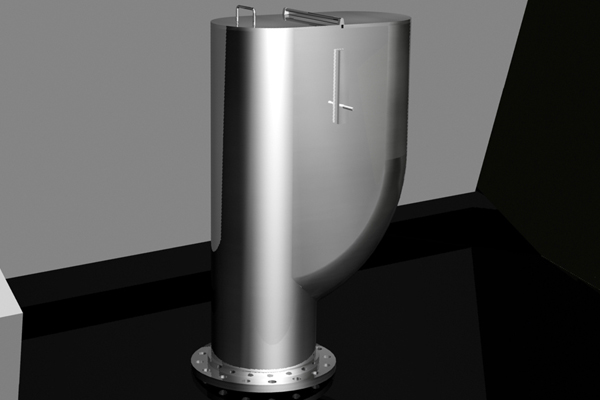

The Gauge Pole Retriever is made of Aluminium or Stainless Steel . This material is resistant hydrocarbons, chemicals, ozone and is weather-proof.

Installation
The Gauge Pole Retriever is easy to install and easily removed.

Gauge Pole Retriever Sizes
Gauge Pole Retrievers are available for 6" to 16" . It is required to verify exact gauge pole details prior to fitting the gauge pole pipes however, this to identify suitability as gauge pole installations typically are individually designed for each new tank, so sizing might be different for the same gauge pole diameter.



emission control gauge pole retriever device

emission control gauge pole retriever device
