The leg seal is used on open-top storage tanks, often in situations where mixers are used. It reduces emissions from roof legs considerably, nowadays developing into a standard for tanks storing volatile hydrocarbons. It also ensures that the support legs remain operational by preventing rainwater ingress. The locking pin is completely surrounded by the leg seal, preventing the support legs from dropping down as a result of pin displacement caused by mixer vibrations.

Product Description

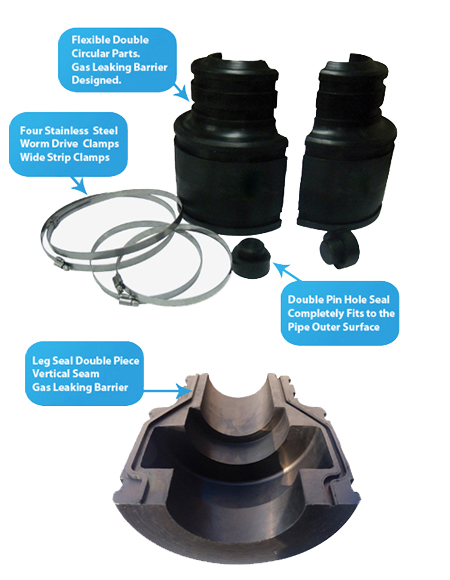

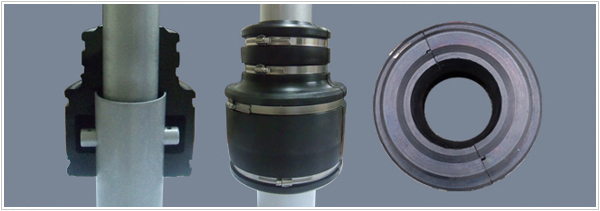

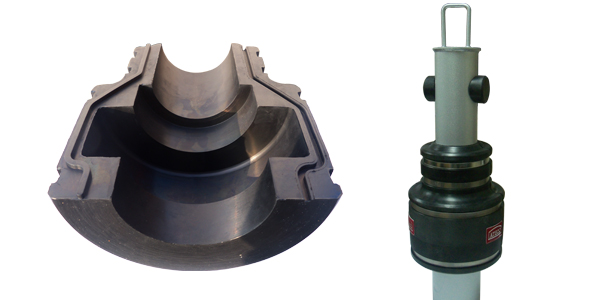

The leg seal consists of two circular parts, manufactured from flexible material, when combined surrounding the support leg and a part of the leg sleeve. The contact surfaces of both parts fit together with tongue and groove connections; the cylindrical surfaces have a sealing profile on the inside. Stainless steel hose clamps connect both individual parts against one another and around the support leg and the leg sleeve. For gastight seals pin hole plugs can be include.

Reduce Emissions from Floating Roof Support Legs
* Excellent Seal
* Long Service Life
* Maintenance Free
* Fast and Simple installation
* Prevents seizing of the support legs to the sleeves
* Extra locking pin
* Reusable

Material
The leg seal is made of EPDM rubber. This material is resistant to hydrocarbons, chemicals, ozone and is weather-proof.

Installation
The leg seal is easy to install and easily removed in order to either pull or push the legs to another position, subject to operational requirements for the tank involved

Leg Sizes Covered
Leg seals are available for 3” and 4” floating roof legs. It is required to verify exact leg details prior to fitting the leg seals however, this to identify suitability as leg penetrations typically are individually designed for each new tank, so sizing might be different for the same leg diameter
