Roof Drain Systems

Swivel Joint Articulated

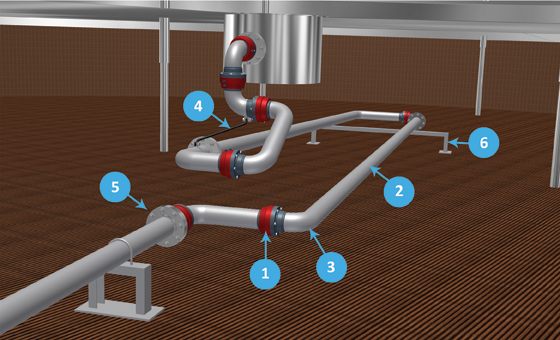

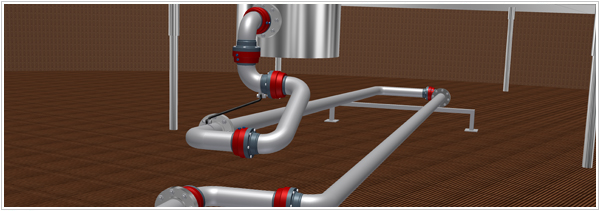

Articulated Drain Systems are systems comprising steel pipes with swivel joints, designed to withstand the forces to which it may be subjected under all operating regimes. The system usually incorporates heavy duty swivel joints but several alternatives are available to suit client preference.

The articulated drain system is available in 3”, 4”, 6” & 8” N.B. Diameter Systems. The system is supplied with full detailed drawings and installation instructions.



roof drain swivel joint articulated

The Accessories of Swivel Joint





internal floating roof seal

internal floating roof seal
